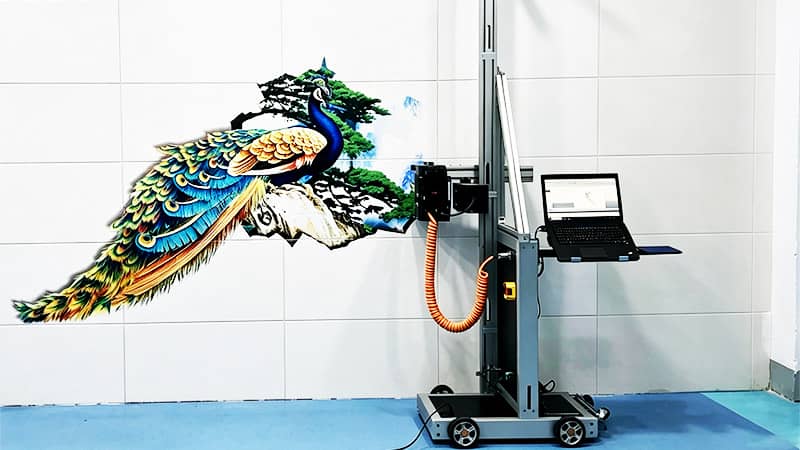

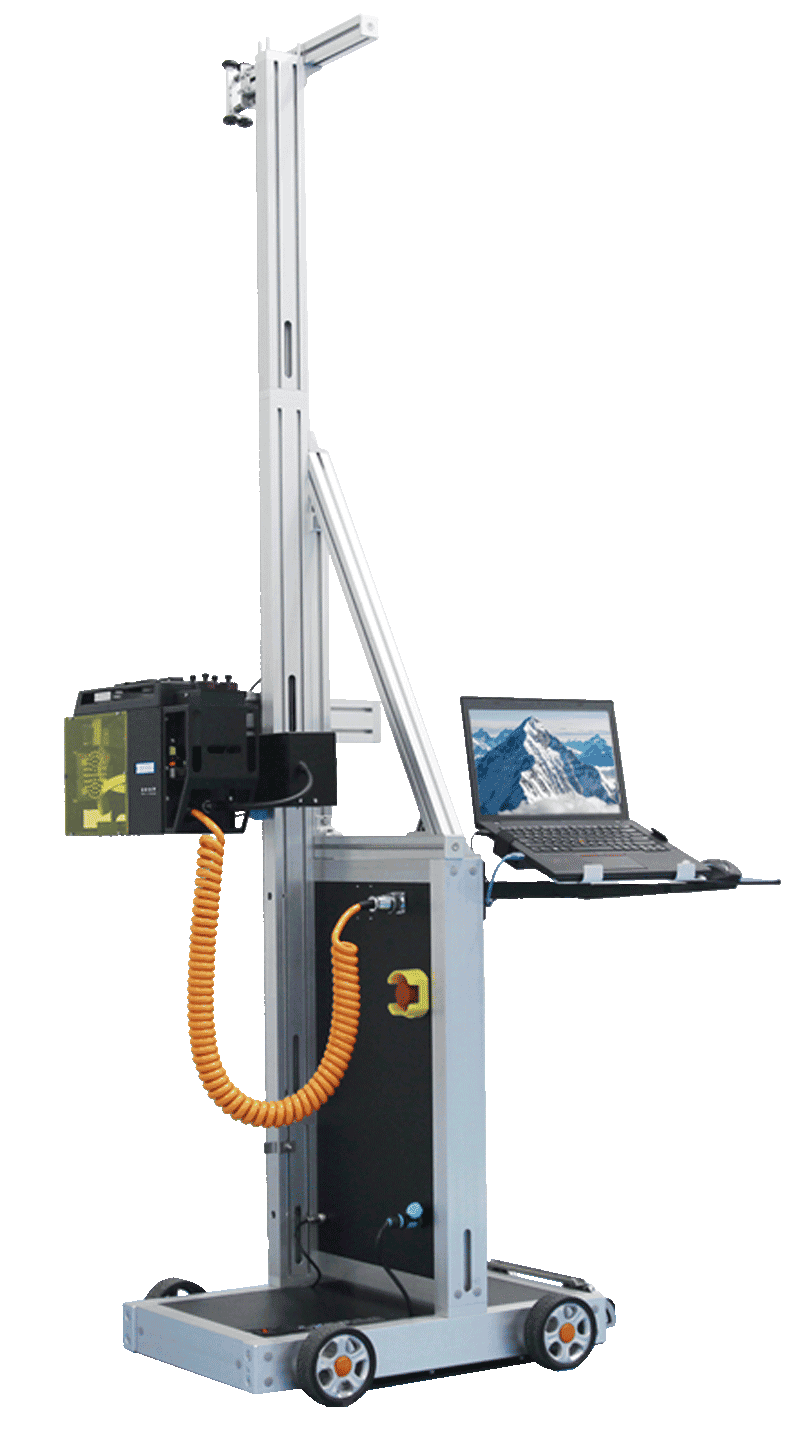

WP2500 Large Format Wall UV Printer
Large Format Vertical Direct Wall Printing Machine For Large-Scale Mural & Commercial Decoration
Dual industrial printhead configuration doubles printing efficiency, uniform ink dot output, long-term batch printing without clogging, meets high-volume mural order demands of engineering companies.

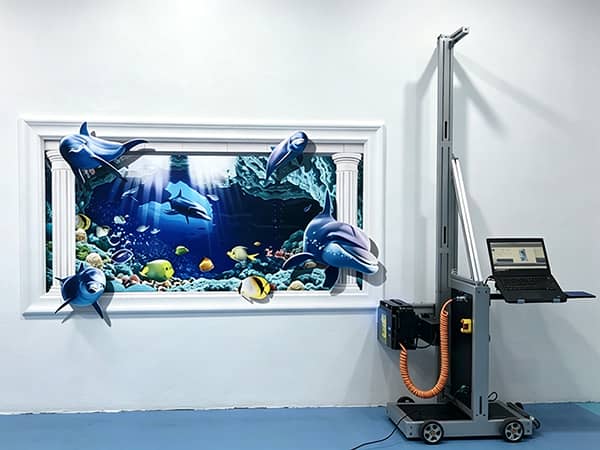

Supports multi-layer stacking of color and white ink to create a thicker 3D relief texture, adding higher value to custom art murals, graffiti, and high-end decorative wall projects.

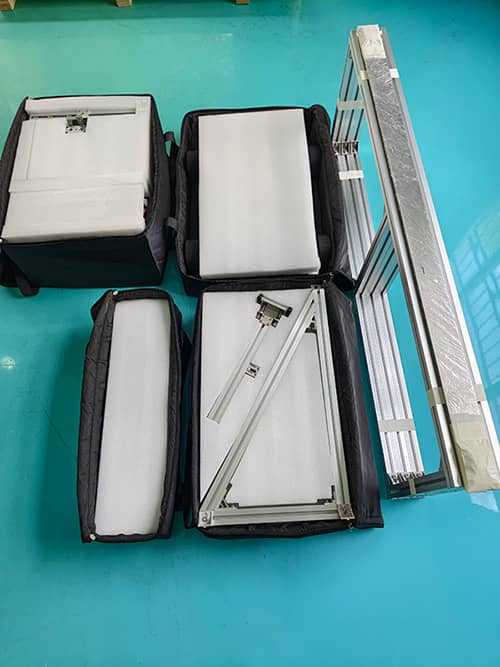

Segmented detachable track rails can be freely spliced according to wall length, no width limit for long factory walls, campus corridor full-wall continuous printing without stitching gaps.

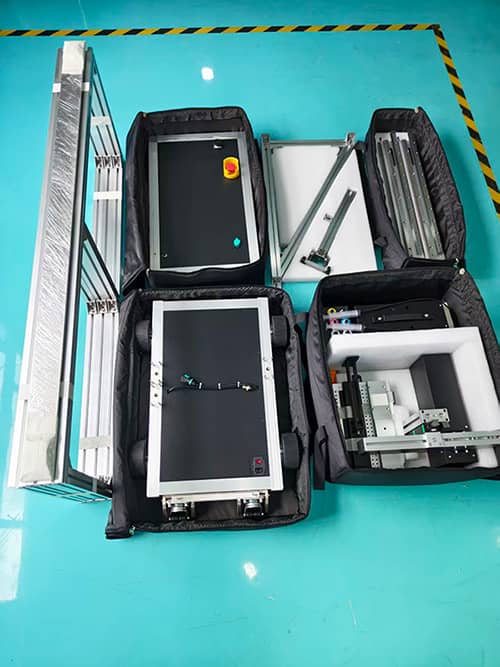

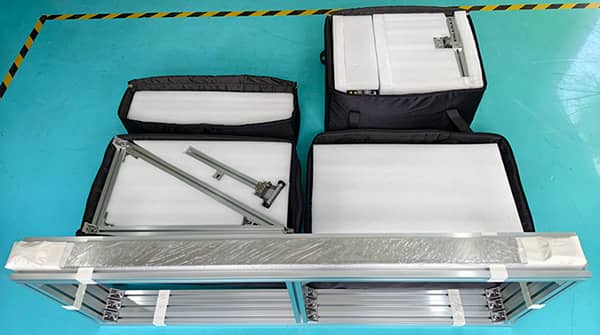

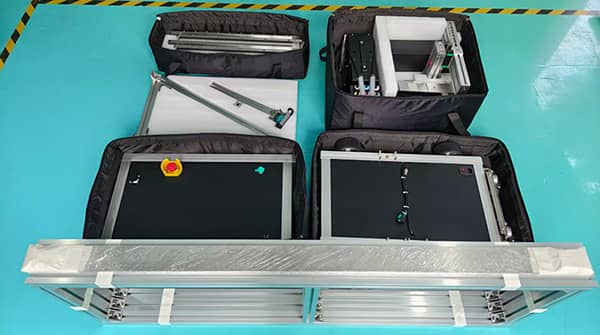

Integrated modular split structure with lightweight aluminum alloy frame, one worker completes full machine assembly in 7 minutes, greatly saving on-site construction preparation time.
Stable long-distance WiFi signal connection, real-time preview printing effect on laptop/tablet, one-click parameter switching for speed, texture and color without wired cable restriction.
Upgraded double steel belt driving structure eliminates printing jitter during high-speed operation, ensuring uniform ink drop placement and no ghosting for long continuous wall printing.

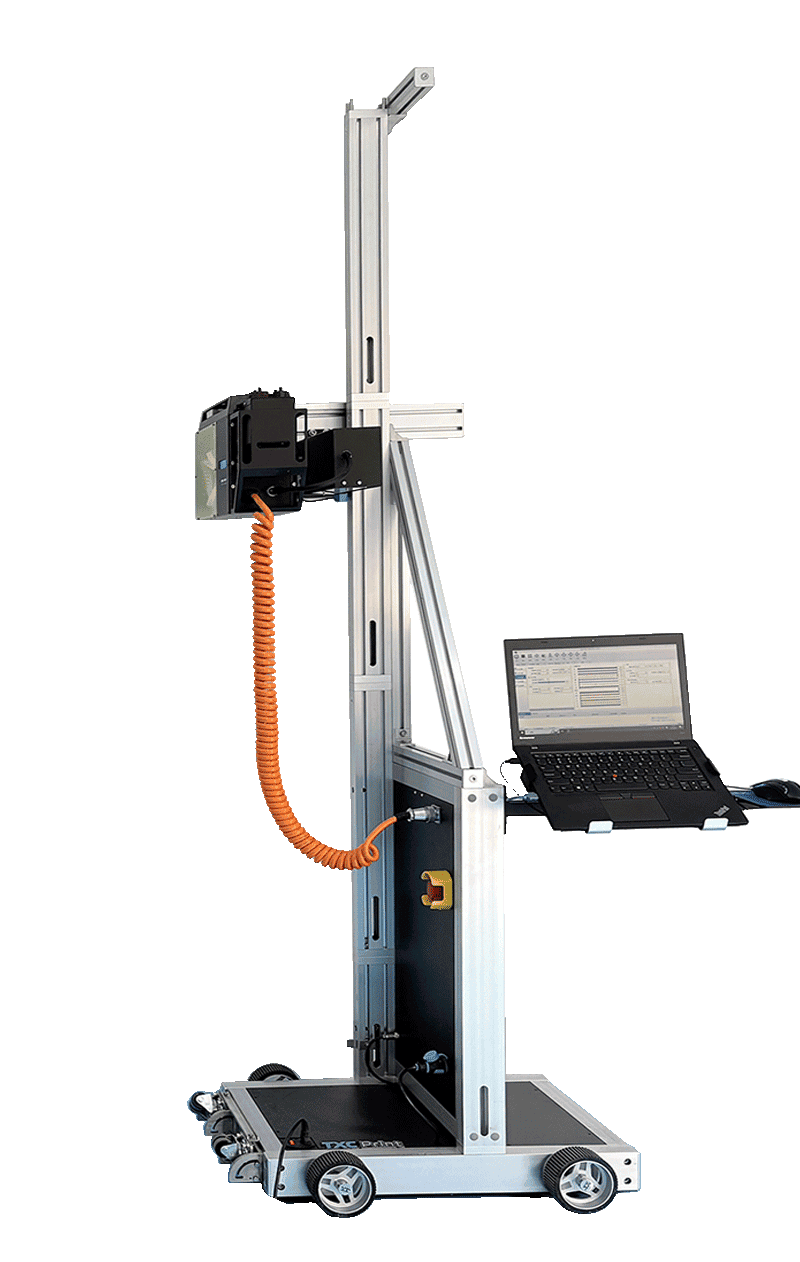

| Printhead Configuration | Dual Epson i1600 Industrial Printheads |
| Ink System | CMYK + White 5-Color Constant Temperature UV Ink |
| Max Single Pass Printing Height | 3.0 Meters |
| Printing Width Limit | Unlimited (Extendable Segmented Track Rails) |
| Standard Printing Speed | 12–18 sqm/h; Max Draft Speed 26 sqm/h |

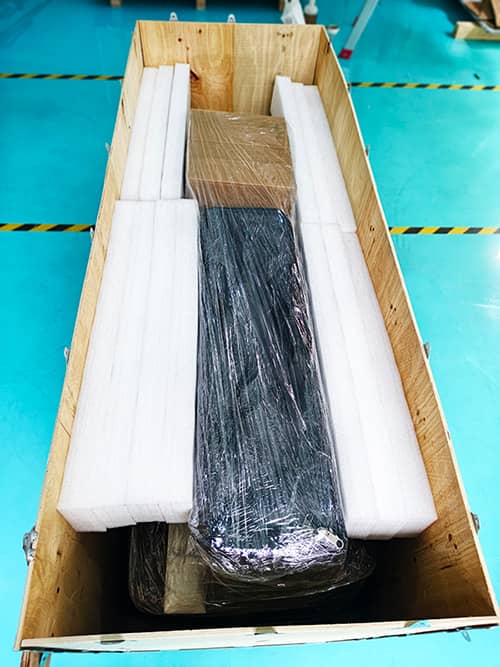

| Main Unit Net Weight | 78 KG (Track Rails Separately Packed) |
| Main Machine Dimension | 1420*360*480mm |
| Control Mode | WiFi Wireless + Wired Dual Connection |
| Global Voltage Support | AC110V/220V 50/60Hz Wide Voltage |
| Rated Total Power | 1100W (Dual Printhead + UV Curing Lamp) |
| Compatible RIP Software | Maintop, Photoprint, RIIN |
| Supported Graphic Formats | JPG, PNG, PDF, TIFF, EPS, PSD, AI |
| Core Built-In Functions | 6D Emboss Printing, Breakpoint Resume, Auto Ink Circulation, Auto Cleaning, White Ink Agitation, Intelligent Gap Adjustment |
| Curing Equipment | Dual Side Instant UV LED Curing Lamps |
| Official Warranty | 12 Months Full Machine Warranty (Printheads, Ink & Consumables Excluded) |

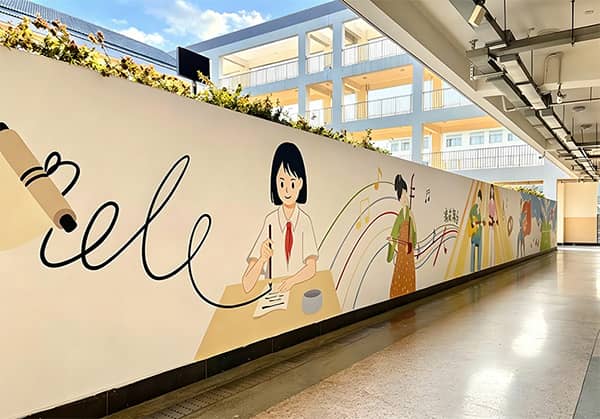

Long continuous wall murals for primary, secondary schools and university campus culture construction projects.
Large store facade vertical promotional graphics, seasonal replacement commercial wall art.

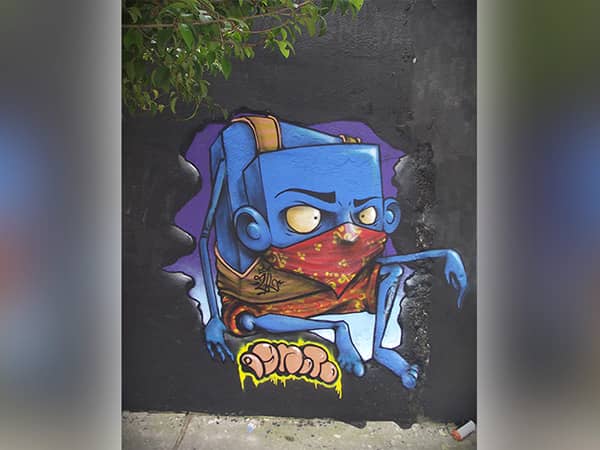

Weather-resistant enterprise culture graffiti, safety warning murals for industrial parks.
6D embossed luxury murals for lobby, corridor and guest room background walls.
Large immersive scene murals for indoor playgrounds and outdoor scenic wall landscapes.
Brand background walls, sample room decorative murals for real estate marketing centers.
12-month full machine manufacturer warranty (excluding consumables: printheads, UV ink, cleaning wiper). Lifetime free remote video troubleshooting, global factory direct supply of spare parts at cost price, priority technical response for engineering customers with mass printing orders.
Yes, segmented extendable rails can be freely spliced according to wall length, matched with AI breakpoint positioning system to ensure seamless connection between each printing section without obvious stitching traces.
Standard high-definition commercial mode reaches 12–18 sqm/h; fast draft mode for rough outdoor walls supports up to 26 square meters per hour, greatly improving large project delivery efficiency.
Built-in adaptive gap adjustment function supports vertical surface unevenness within 10mm, stable clear printing on rough unpolished brick and cement walls without missing ink dots.
Yes, it is fully supported. With adjustable white ink stacking from 1 to 8 layers, it can create a distinct raised 3D texture for art murals, graffiti, and decorative background walls, helping to increase project profit margins.
The machine is equipped with an independent breakpoint memory chip, so all printing coordinates and layer data are automatically saved. Power failure recovery requires only one click to continue printing without wasting work.
Using outdoor anti-UV weather-resistant ink, printed patterns can resist rain erosion and sunlight fading for 4–6 years without extra protective coating.
Only one trained operator can independently complete track assembly, graphic upload, positioning debugging and full-wall continuous printing operation without auxiliary staff.
Dual synchronous steel belt anti-shake drive structure effectively eliminates horizontal and vertical vibration during high-speed movement, no ghosting, blurring or ink deviation for long-time batch printing.
